Position | Gear | 4) | 6) | 4, 5, 6) | |||
|---|---|---|---|---|---|---|---|
R | R | Off | Off | Off | Off | On | Off |
CB = Clutch brake, NC = Normally closed, NH = Normally high, NL = Normally low
For solenoid information, Refer to: Main Control Valve Body .
Neutral Position

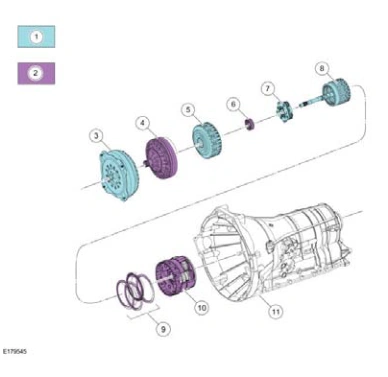

Item | Description |
1 | Driven Components |
2 | Held Components |
3 | Torque Converter |
4 | Pump Assembly |
5 | Forward Clutch Cylinder and Hub Assembly |
6 | Front Planetary Sun Gear (No. 1) |
7 | Front Planetary Carrier Assembly |
8 | Front Planetary Ring Gear Assembly (Input Shaft) |
9 | Low Reverse Clutch (D) Assembly |
10 | Rear Planetary Carrier |
11 | Transmission Case |
Mechanical Operation
Apply components:
Low/reverse clutch (D) applied
Planetary Gearset Operation
