SSD supplies pressure to the solenoid multiplex valve through the VFS4 circuit.
SSB supplies pressure to the clutch B regulator and latch valves to position the valves for direct clutch (B) application.
Clutch hydraulic circuits:
Line pressure is supplied by the pump to the D1 latch and regulator valves.
Regulated line pressure from the D1 regulator valve is supplied to the low/reverse clutch (D) to apply the clutch.
Line pressure is supplied by the manual valve to the clutch B latch and regulator valves.
Regulated line pressure from the clutch B regulator valve is supplied to the direct clutch (B) to apply the clutch.
Neutral Position Solenoid Operation Chart
Solenoid operation:
Selector Lever Position | PCM Commanded Gear | SSA NL (1, 2, 3, 4) | SSB NH (3, 5, R) | SSC NL (CB 2, 6) | SSD NH (CB L/R 4, 5, 6) | SSE NC | TCC NL |
|---|---|---|---|---|---|---|---|
R | R | Off | Off | Off | Off | On | Off |
CB = Clutch brake, NC = Normally closed, NH = Normally high, NL = Normally low
For solenoid information, Refer to: Main Control Valve Body .
1st Gear

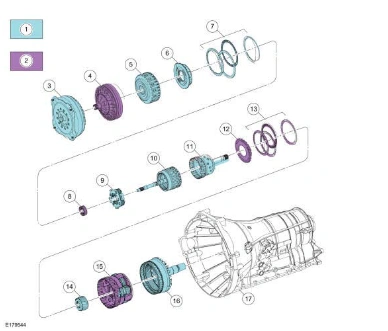

Item Description
