Planetary carrier
Front planetary gearset held components:
Sun gear (splined to pump assembly)
Rear planetary gearset driving components:
None
Rear planetary gearset driven components:
None
Rear planetary gearset held components:
Planetary carrier
Neutral Position Clutch Application Chart
Gear | Forward A (1, 2, 3, 4) | Direct B (3, 5, R) | Intermediate C (2, 6) | Low/Reverse D (1, R) | Overdrive E (4, 5, 6) | Low-OWC |
|---|---|---|---|---|---|---|
Reverse | - | - | - | H* | - | - |
Planetary Components | Front planetary carrier- to-No. 3 sun gear | Front carrier- to-No. 2 sun gear | No. 2 sun gear | Rear planetary carrier | Input shaft- to-rear planetary carrier | Rear planetary carrier |
* H = Hold Clutch

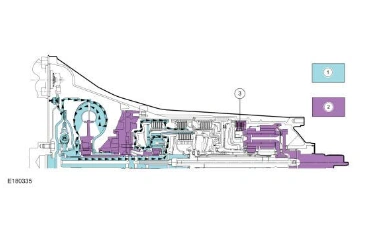

Neutral Position Power Flow
Item | Description |
1 | Driven Components |
