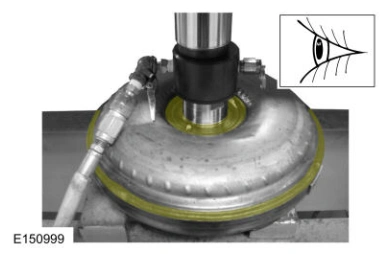

21. Inspect for leaks at the stud or mounting pad and balance weight welds. A soap bubble solution can be applied around those areas to aid in the diagnosis. If any leaks are present, install a new torque converter.

Low Reverse Clutch Assembly — original illustration 2, reference 8836Original colors & callouts · Select to enlarge

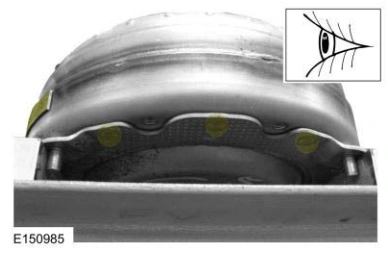

22. After leaks are repaired, clean the remaining transmission fluid dye from serviced areas.

DIAGNOSIS AND TESTING > LOW REVERSE CLUTCH ASSEMBLY

Low/Reverse Clutch

For low/reverse clutch operation, REFER to: Low/Reverse Clutch Assembly . Low/Reverse Clutch

Condition Possible Sources Action CLEAN or INSTALL a new SSD solenoid filter blocked to solenoid. REFER to: Shift Solenoids (SS) . Low/Reverse clutch does not INSTALL a new solenoid. REFER apply to: Shift Solenoids (SS) . SSD is mechanically stuck OFF PERFORM the Transmission Strategy Download, REFER to: Transmission Strategy Download .
