Leakage Inspection — Automatic Transmission - 6-Speed Automatic Transmission - 6R80 · Reference 8835

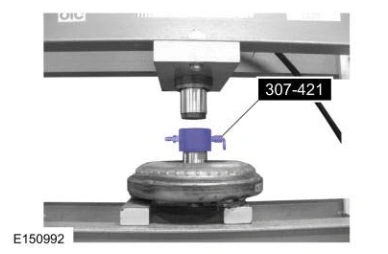

17. Install the torque converter leak tester (307-421) into the torque converter hub.

Leakage Inspection — original illustration 1, reference 8835Original colors & callouts · Select to enlarge

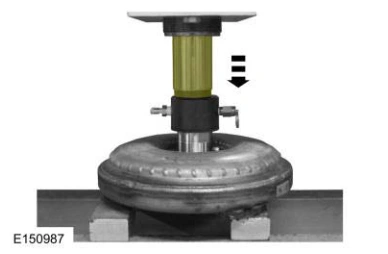

18. Secure the press. Apply enough force from the press to seal the torque converter leak tester (307-421) into the torque converter hub.

Leakage Inspection — original illustration 2, reference 8835Original colors & callouts · Select to enlarge

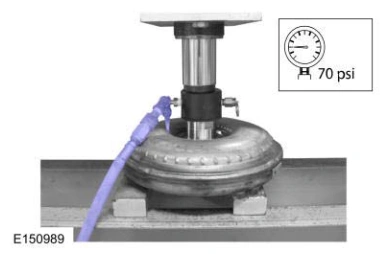

19. Connect a compressed air supply to the torque converter leak tester (307-421).

Leakage Inspection — original illustration 3, reference 8835Original colors & callouts · Select to enlarge

20. Inspect for leaks at the torque converter hub weld and seams with air pressure applied to the valve. A soap bubble solution can be applied around those areas to aid in the diagnosis. If any leaks are present, install a new torque converter.
