Transmission Fluid Drain And Refill — Automatic Transmission - 6-Speed Automatic Transmission - 6R80 · Reference 8861

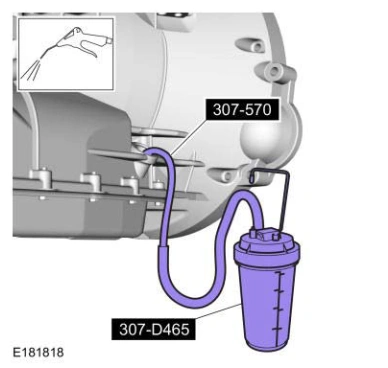

Transmission Fluid Drain And Refill — original illustration 1, reference 8861Original colors & callouts · Select to enlarge

1. Connect the diagnostic scan tool and monitor the transmission fluid temperature.

2. Start the engine.

3. Place the selector lever in each gear position, holding approximately 5 seconds in each position. Place the selector lever in PARK, with the engine at idle (600-750 RPM).

Check the transmission fluid level using the transmission fluid level indicator.

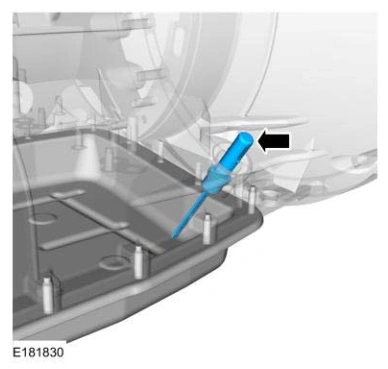

Transmission Fluid Drain And Refill — original illustration 2, reference 8861Original colors & callouts · Select to enlarge

NOTE: The vehicle is safe to drive with a cold transmission fluid temperature if the transmission fluid level is in the transmission fluid level indicator area below the crosshatch mark as shown. Failure to add transmission fluid to this level can result in damage to the transmission.
