Transmission Fluid Drain And Refill — Automatic Transmission - 6-Speed Automatic Transmission - 6R80 · Reference 8863

plug.

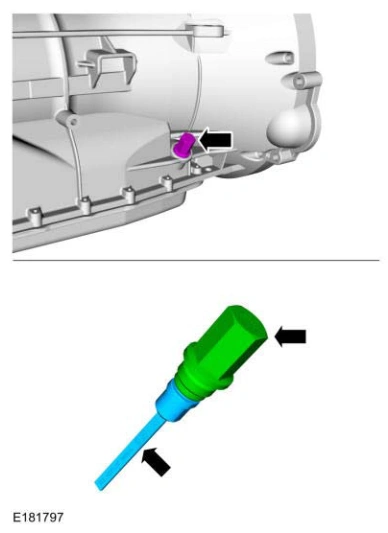

Transmission Fluid Drain And Refill — original illustration 1, reference 8863Original colors & callouts · Select to enlarge

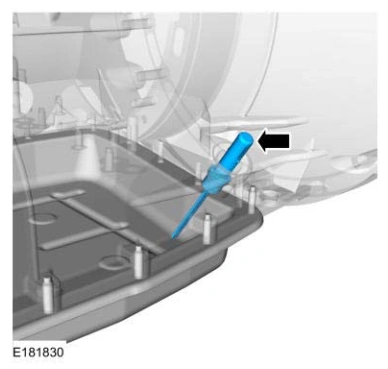

8. Check the transmission fluid level using the transmission fluid level indicator.

Transmission Fluid Drain And Refill — original illustration 2, reference 8863Original colors & callouts · Select to enlarge

NOTE: The transmission fluid level indicator has 2 areas for the fluid level, a crosshatched (A) area and a dotted (B) area. Use the dotted (B) area when checking the transmission fluid level. The correct transmission fluid level is at the upper level of the dotted (B) area marks on the transmission fluid level indicator.

9. Using the scan tool verify the transmission fluid temperature is between 96.7 °C - 102 °C (206 °F - 215 °F). The transmission fluid level must be at the upper level of the dotted (B) area.
