Transmission Fluid Level Check — Automatic Transmission - 6-Speed Automatic Transmission - 6R80 · Reference 8865

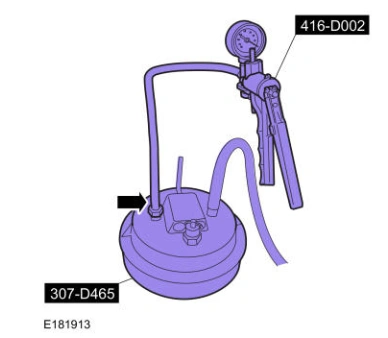

Transmission Fluid Level Check — original illustration 1, reference 8865Original colors & callouts · Select to enlarge

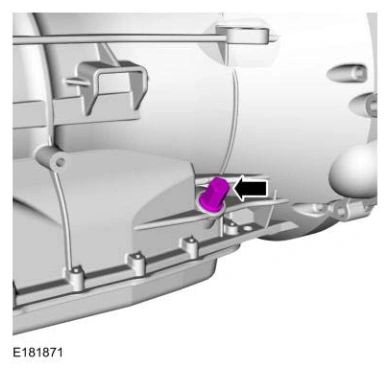

12. Install the transmission fluid fill plug.

Torque

: 26 lb.ft (35 Nm)

Transmission Fluid Level Check — original illustration 2, reference 8865Original colors & callouts · Select to enlarge

GENERAL PROCEDURES > TRANSMISSION FLUID LEVEL CHECK

Inspection

NOTE: The vehicle should not be driven if the transmission fluid level is low. Internal failure could result.

NOTE: If the vehicle has been operated for an extended period at high highway speeds, in city traffic, during hot weather or while pulling a trailer, the transmission fluid must cool down to obtain an accurate reading.
