GENERAL PROCEDURES > TRANSMISSION IDENTIFICATION
Check
1. Using the scan tool, select Powertrain, Transmission and Transmission Characterization / Solenoid IDN from the toolbox icon and follow the instructions displayed on the scan tool. The Transmission Characterization / Solenoid IDN screen displays solenoid body identification information:
Solenoid body identification is a 12-digit number
Solenoid body strategy is a 13-digit number. If the solenoid body strategy field is blank, the module contains a partial transmission solenoid body strategy. This is due to a corrupt or missing file at the time the programmable parameters were completed.
NOTE: The 13-digit solenoid body strategy number consists of only numbers. Letters are not used.

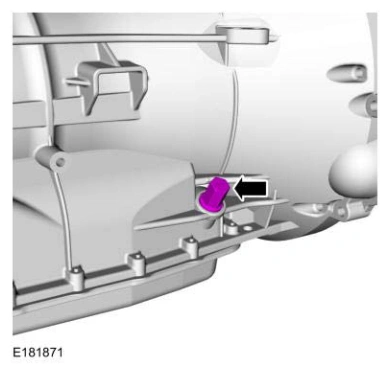

2. Compare the solenoid body identification and strategy to the solenoid body identification tag located on the left side of the transmission case.
Original Solenoid Body Service Tag
3.
1. 13 - digit solenoid body strategy
2. 12 - digit solenoid body identification
