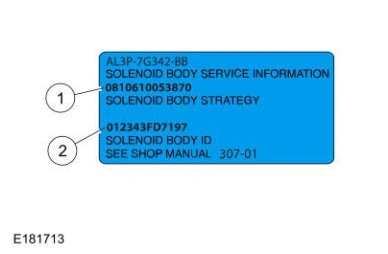

1. If a new main control was installed, record the 12-digit solenoid body identification and 13-digit solenoid body strategy from the replacement solenoid body tag provided with the main control service kit. Place the replacement tag over the existing identification tag.
13 - digit solenoid body strategy
12 - digit solenoid body identification
2. Using the scan tool, select module Programming and Programmable Parameters under the toolbox icon and select transmission. Follow the instructions displayed on the scan tool. There are fields to enter the solenoid body 12-digit identification and 13-digit strategy recorded from the solenoid body.
NOTE: If the solenoid body information is not correct, transmission damage or driveability concerns can occur.
3. Enter the solenoid body 13-digit strategy. The scan tool verifies the numbers entered are valid and display a message if the information is not valid. The scan tool will check to verify the file is present on the scan tool. If the file is present, the technician may proceed with downloading the file to the module. If the file is not present, the scan tool will need to be connected to the Professional Technician Society (PTS) server to download the file onto the scan tool.
4. Verify the file is present on the scan tool. If the file is present, go to Step 8. If the file is not present, continue with this procedure.
5. Connect the scan tool to the Professional Technician Society (PTS) server.
6. Follow the instructions on the network to download the strategy file to the scan tool.
7.
