Transmission Fluid Level Check — Automatic Transmission - 6-Speed Automatic Transmission - 6R80 · Reference 8867

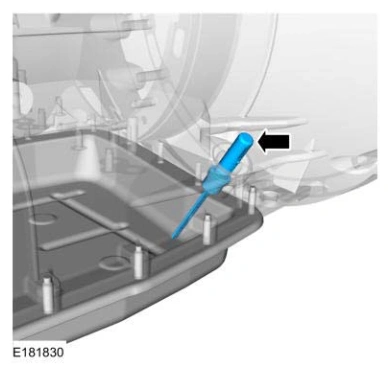

Transmission Fluid Level Check — original illustration 1, reference 8867Original colors & callouts · Select to enlarge

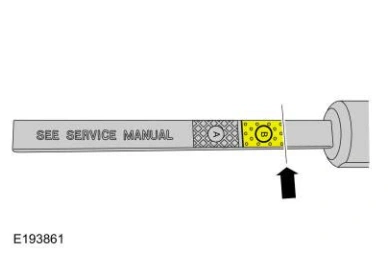

NOTE: The transmission fluid level indicator has 2 areas for the fluid level, a crosshatched (A) area and a dotted (B) area. Use the dotted (B) area when checking the transmission fluid level. The correct transmission fluid level is at the upper level of the dotted (B) area marks on the transmission fluid level indicator.

5. Using the scan tool verify the transmission fluid temperature is between 96.7 °C - 102 °C (206 °F - 215 °F). The transmission fluid level must be at the upper level of the dotted (B) area.

Transmission Fluid Level Check — original illustration 2, reference 8867Original colors & callouts · Select to enlarge

6. If the transmission fluid is not at the correct level, follow the steps for adding or removing transmission fluid. Refer to: Transmission Fluid Drain and Refill .

7. Install the transmission fluid fill plug.

Torque

: 26 lb.ft (35 Nm)
