Transmission Fluid Drain And Refill — Automatic Transmission - 6-Speed Automatic Transmission - 6R80 · Reference 8864

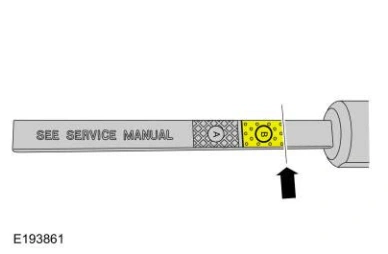

Transmission Fluid Drain And Refill — original illustration 1, reference 8864Original colors & callouts · Select to enlarge

10. If the transmission fluid level is low, add transmission fluid using the special tools.Use Special Service Tool: 307-570 Tube, Transmission Fill., 307-D465 Transporter Fluid Evacuator/Injector.

Material

: Motorcraft ® MERCON ® LV Automatic Transmission Fluid (U.S.) / XT-10-QLVC (U.S.) (MERCON ® LV) (WSS-M2C938-A)

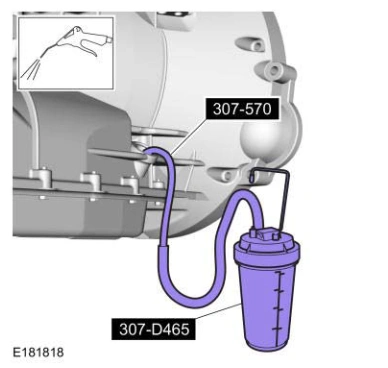

Transmission Fluid Drain And Refill — original illustration 2, reference 8864Original colors & callouts · Select to enlarge

11. If the transmission fluid is overfilled, remove transmission fluid using the special tools. Use Special Service Tool: 307-570 Tube, Transmission Fill., 307-D465 Transporter Fluid Evacuator/Injector., 416-D002 Vacuum Pump Kit.

Material

: Motorcraft ® MERCON ® LV Automatic Transmission Fluid (U.S.) / XT-10-QLVC (U.S.) (MERCON ® LV) (WSS-M2C938-A)
