Removal

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,896HTML edition
← Chapter contentsManual collection

NOTE: If transmission disassembly or installation of a new transmission is necessary, drain the transmission fluid.

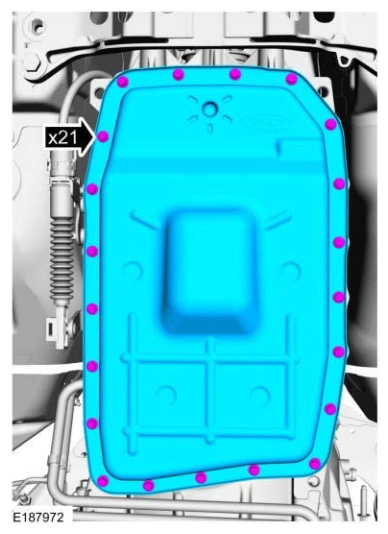

6. Remove the transmission fluid pan bolts and the transmission fluid pan and allow the transmission fluid to drain.

Removal — original illustration 1, reference 8896Original colors & callouts · Select to enlarge

NOTE: It is not necessary to torque transmission fluid pan bolts at this time.

7. Install the transmission fluid pan and the bolts.
