Removal

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,895HTML edition
← Chapter contentsManual collection

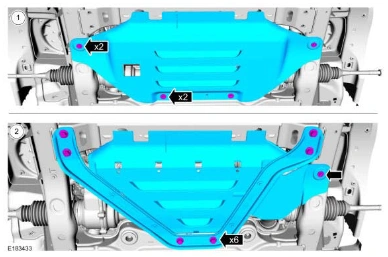

Removal — original illustration 1, reference 8895Original colors & callouts · Select to enlarge

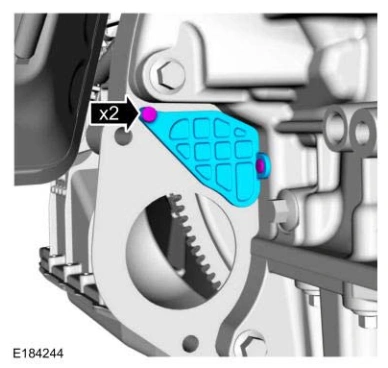

4. Remove the retainers and the access cover.

Removal — original illustration 2, reference 8895Original colors & callouts · Select to enlarge

NOTE: Using the crankshaft pulley bolt, turn the engine clockwise.

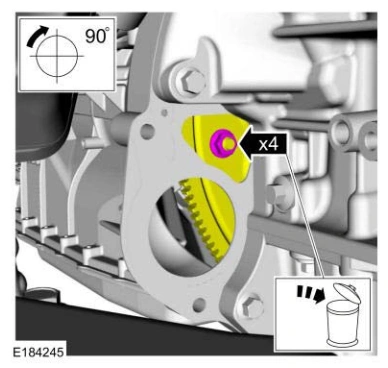

5. Remove and discard the torque converter nuts.

Removal — original illustration 3, reference 8895Original colors & callouts · Select to enlarge
