Transmission - 2.3L EcoBoost (231kW 314PS) — Installation

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,892HTML edition
← Chapter contentsManual collection
Transmission - 2.3L EcoBoost (231kW 314PS) — original illustration 1, reference 8892Original colors & callouts · Select to enlarge

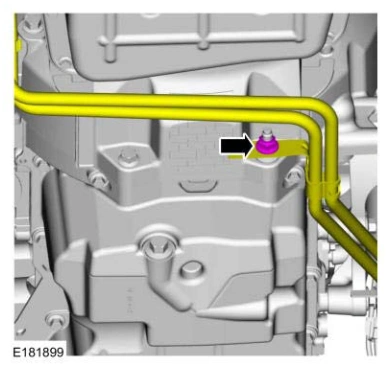

21. Install the transmission fluid cooler tube nut on the RH engine mount bracket.

Torque

: 35 lb.ft (48 Nm)

Transmission - 2.3L EcoBoost (231kW 314PS) — original illustration 2, reference 8892Original colors & callouts · Select to enlarge

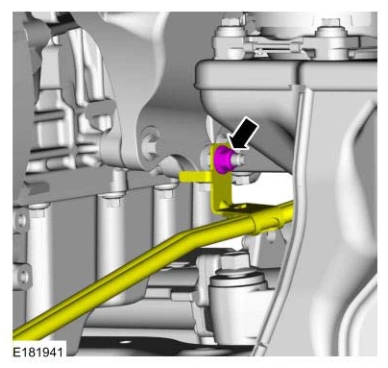

22.

1. Install the underbody shield and the bolts.

Torque

: 46 lb.ft (63 Nm)

2. Install the underbody shield screws.
