Transmission - 2.3L EcoBoost (231kW 314PS) — Installation

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,889HTML edition

← Chapter contents Manual collection

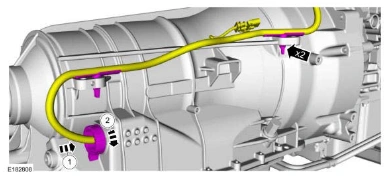

Transmission - 2.3L EcoBoost (231kW 314PS) — original illustration 1, reference 8889Original colors & callouts · Select to enlarge

14.

1. Push the transmission electrical connector in to connect.

2. Rotate the transmission electrical connector clockwise.

Attach the wiring harness retainers.

Transmission - 2.3L EcoBoost (231kW 314PS) — original illustration 2, reference 8889Original colors & callouts · Select to enlarge

15. Connect the selector lever cable retainer to the transmission case.

Ford_Mustang_all_2015-2017.pdf · source reference 8889
