Transmission - 2.3L EcoBoost (231kW 314PS) — Installation

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,890HTML edition

← Chapter contents Manual collection

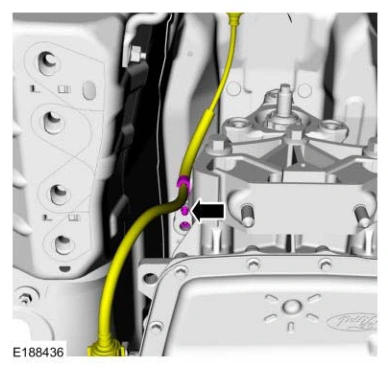

Transmission - 2.3L EcoBoost (231kW 314PS) — original illustration 1, reference 8890Original colors & callouts · Select to enlarge

16. Install the transmission support crossmember. Refer to: Transmission Support Crossmember .

17.

1. Connect the selector lever cable to the bracket.

2. Install the bolt.

Torque

: 62 lb.in (7 Nm)

3. Connect the selector lever cable to the selector lever.

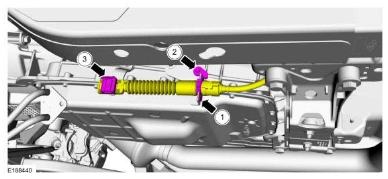

Transmission - 2.3L EcoBoost (231kW 314PS) — original illustration 2, reference 8890Original colors & callouts · Select to enlarge

NOTE: Lubricate with clean transmission fluid.

18. Inspect the transmission fluid cooler tube band seals and backing rings for damage, replace if necessary.
