Transmission - 2.3L EcoBoost (231kW 314PS) — Installation

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,891HTML edition

← Chapter contents Manual collection

Material

: Motorcraft ® MERCON ® LV Automatic Transmission Fluid (U.S.) / XT-10-QLVC (U.S.) (MERCON ® LV) (WSS-M2C938-A)

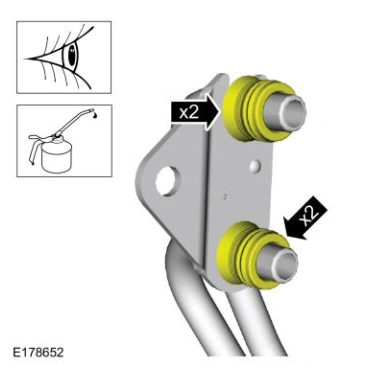

Transmission - 2.3L EcoBoost (231kW 314PS) — original illustration 1, reference 8891Original colors & callouts · Select to enlarge

19. Install the transmission fluid cooler tubes and the new bolt.

Torque

: 18 lb.ft (25 Nm)

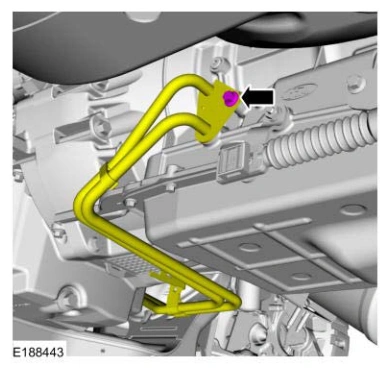

Transmission - 2.3L EcoBoost (231kW 314PS) — original illustration 2, reference 8891Original colors & callouts · Select to enlarge

20. Install the transmission fluid cooler tube bracket nut.

Torque

: 124 lb.in (14 Nm)
