Transmission - 2.3L EcoBoost (231kW 314PS) — Installation

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,888HTML edition
← Chapter contentsManual collection
Transmission - 2.3L EcoBoost (231kW 314PS) — original illustration 1, reference 8888Original colors & callouts · Select to enlarge

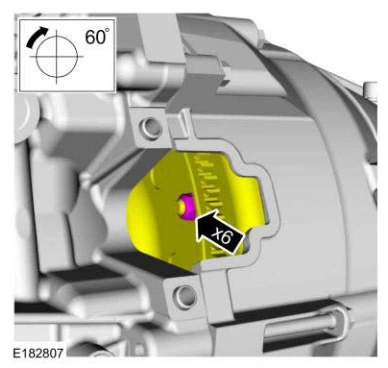

NOTE: Only rotate the crankshaft in a clockwise direction.

12. Install the new torque converter nuts.

Torque

: 35 lb.ft (48 Nm)

Transmission - 2.3L EcoBoost (231kW 314PS) — original illustration 2, reference 8888Original colors & callouts · Select to enlarge

13. Install the starter motor insulator.
