Transmission - 2.3L EcoBoost (231kW 314PS) — Installation

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,885HTML edition

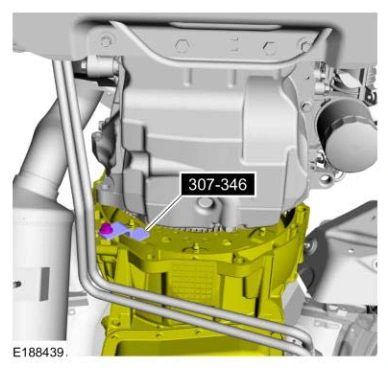

Transmission - 2.3L EcoBoost (231kW 314PS) — original illustration 1, reference 8885Original colors & callouts · Select to enlarge

NOTE: With the transmission in a horizontal position, move it toward the engine and position it on the dowel pins.

NOTE: Make sure the torque converter is fully seated in the transmission before aligning the transmission to the engine.

6. Install the upper bellhousing bolts.

Torque

: 35 lb.ft (48 Nm)

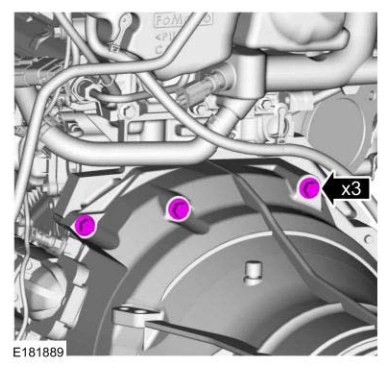

Transmission - 2.3L EcoBoost (231kW 314PS) — original illustration 2, reference 8885Original colors & callouts · Select to enlarge

7. Install the LH side bellhousing bolts.

Torque

: 35 lb.ft (48 Nm)
