Transmission - 2.3L EcoBoost (231kW 314PS) — Installation — Automatic Transmission - 6-Speed Automatic Transmission - 6R80 · Reference 8883

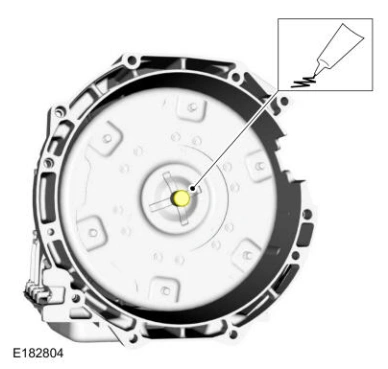

2. Lubricate the torque converter pilot hub with multi-purpose grease.

Material

: Motorcraft ® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

Transmission - 2.3L EcoBoost (231kW 314PS) — original illustration 1, reference 8883Original colors & callouts · Select to enlarge

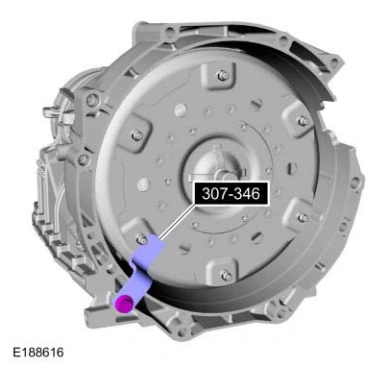

3. Install the special tool. Use Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.

Transmission - 2.3L EcoBoost (231kW 314PS) — original illustration 2, reference 8883Original colors & callouts · Select to enlarge

NOTE: If transmission was disassembled, add transmission fluid to the transmission.

NOTE: If transmission is being replaced, remove the transmission fluid fill plug and verify that the transmission is filled with transmission fluid.
