Transmission - 2.3L EcoBoost (231kW 314PS) — Removal

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,880HTML edition
← Chapter contentsManual collection
Transmission - 2.3L EcoBoost (231kW 314PS) — original illustration 1, reference 8880Original colors & callouts · Select to enlarge

19. Remove the upper bellhousing bolts.

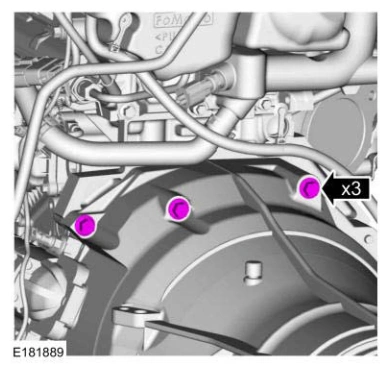

Transmission - 2.3L EcoBoost (231kW 314PS) — original illustration 2, reference 8880Original colors & callouts · Select to enlarge

20. Remove the LH side bellhousing bolts.

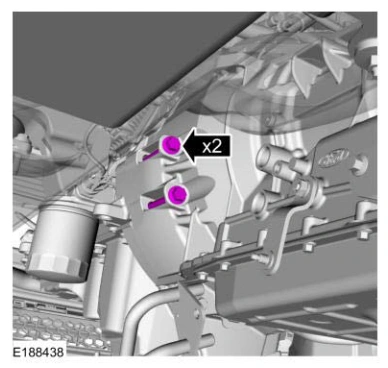

Transmission - 2.3L EcoBoost (231kW 314PS) — original illustration 3, reference 8880Original colors & callouts · Select to enlarge
