Transmission - 2.3L EcoBoost (231kW 314PS) — Removal — Automatic Transmission - 6-Speed Automatic Transmission - 6R80 · Reference 8879

15. Remove the transmission support crossmember. Refer to: Transmission Support Crossmember .

16. Disconnect the selector lever cable retainer from the transmission case.

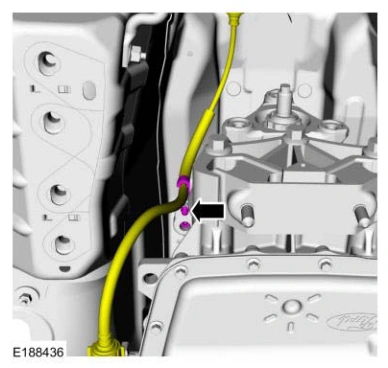

Transmission - 2.3L EcoBoost (231kW 314PS) — original illustration 1, reference 8879Original colors & callouts · Select to enlarge

NOTE: Do not pull on the wiring harness to disconnect the electrical connector or damage to the electrical connector will occur.

17.

1. Rotate the transmission electrical connector counterclockwise.

2. Pull the transmission electrical connector out to disconnect.

Detach the retainers and position the wiring harness aside.

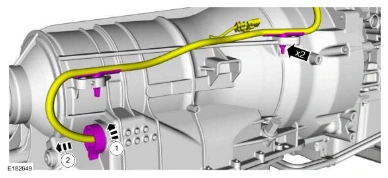

Transmission - 2.3L EcoBoost (231kW 314PS) — original illustration 2, reference 8879Original colors & callouts · Select to enlarge

18. Remove the lower bellhousing bolt and stud bolt.
