Transmission - 2.3L EcoBoost (231kW 314PS) — Removal — Automatic Transmission - 6-Speed Automatic Transmission - 6R80 · Reference 8878

13.

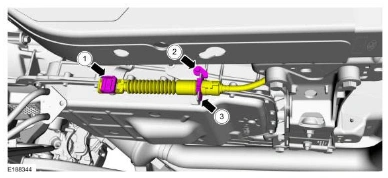

1. Disconnect the selector lever cable from the selector lever.

2. Remove the bolt from the bracket.

3. Disconnect the selector lever cable from the bracket.

Transmission - 2.3L EcoBoost (231kW 314PS) — original illustration 1, reference 8878Original colors & callouts · Select to enlarge

NOTE: Make sure the transmission jack contacts the outer ribs of the transmission fluid pan.

NOTE: Secure the transmission to the transmission jack with a safety strap or chain.

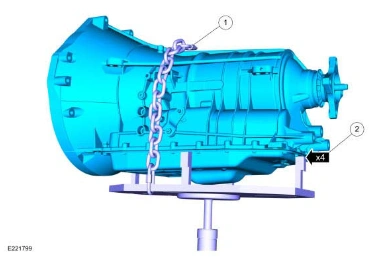

14. Using a high-lift transmission jack, support the transmission.

1. Safety chain

2. Outer ribs of the transmission fluid pan Use the General Equipment: Transmission Jack

Transmission - 2.3L EcoBoost (231kW 314PS) — original illustration 2, reference 8878Original colors & callouts · Select to enlarge
