Transmission - 2.3L EcoBoost (231kW 314PS) — Removal

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,877HTML edition
← Chapter contentsManual collection
Transmission - 2.3L EcoBoost (231kW 314PS) — original illustration 1, reference 8877Original colors & callouts · Select to enlarge

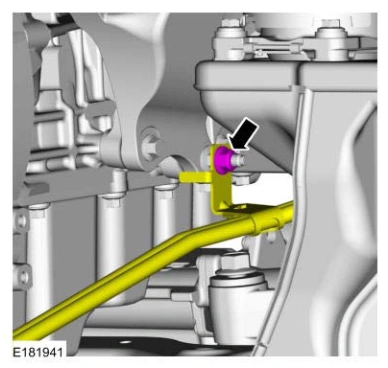

11. Remove the transmission fluid cooler tube nut.

Transmission - 2.3L EcoBoost (231kW 314PS) — original illustration 2, reference 8877Original colors & callouts · Select to enlarge

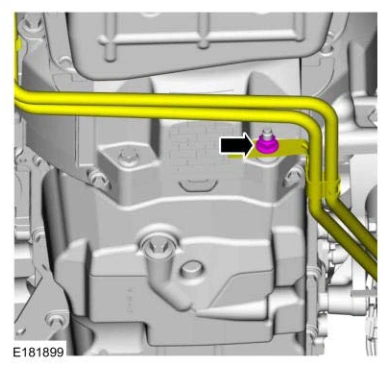

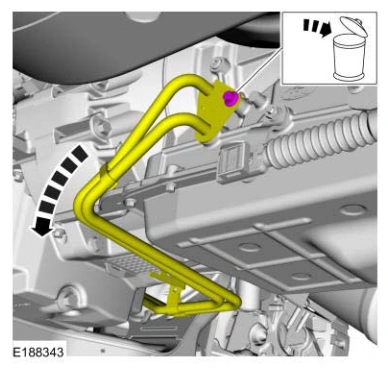

12. Remove and discard the bolt and position the transmission fluid cooler tubes aside.

Transmission - 2.3L EcoBoost (231kW 314PS) — original illustration 3, reference 8877Original colors & callouts · Select to enlarge
