Transmission - 2.3L EcoBoost (231kW 314PS) — Removal

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,876HTML edition
← Chapter contentsManual collection
Transmission - 2.3L EcoBoost (231kW 314PS) — original illustration 1, reference 8876Original colors & callouts · Select to enlarge

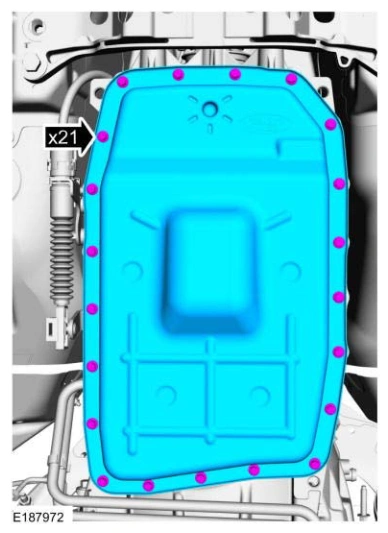

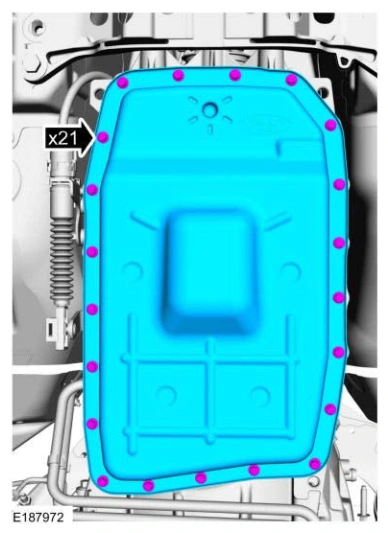

NOTE: It is not necessary to torque transmission fluid pan bolts at this time.

9. Install the transmission fluid pan and the bolts.

Transmission - 2.3L EcoBoost (231kW 314PS) — original illustration 2, reference 8876Original colors & callouts · Select to enlarge

10. Remove the transmission fluid cooler tube nut from the RH engine mount bracket.
