Transmission - 2.3L EcoBoost (231kW 314PS) — Removal

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,875HTML edition
← Chapter contentsManual collection
Transmission - 2.3L EcoBoost (231kW 314PS) — original illustration 1, reference 8875Original colors & callouts · Select to enlarge

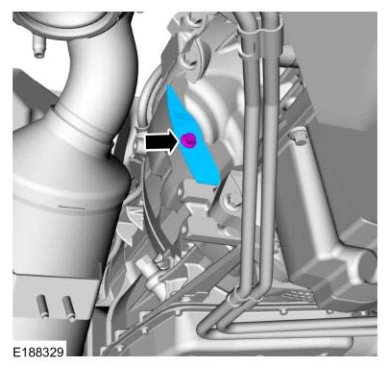

7. Remove the bolt and the dust shield.

Transmission - 2.3L EcoBoost (231kW 314PS) — original illustration 2, reference 8875Original colors & callouts · Select to enlarge

NOTE: If transmission disassembly or installation of a new transmission is necessary, drain the transmission fluid.

8. Remove the transmission fluid pan bolts and the transmission fluid pan and allow the transmission fluid to drain.
