Transmission - 2.3L EcoBoost (231kW 314PS) — Removal

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,881HTML edition

21. Remove the RH side bellhousing bolts.

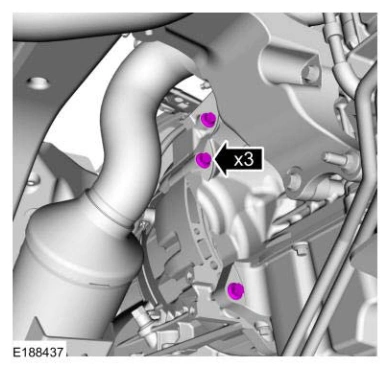

Transmission - 2.3L EcoBoost (231kW 314PS) — original illustration 1, reference 8881Original colors & callouts · Select to enlarge

22. Slide the transmission back enough to install the special tool and remove the transmission from the vehicle. Use Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.

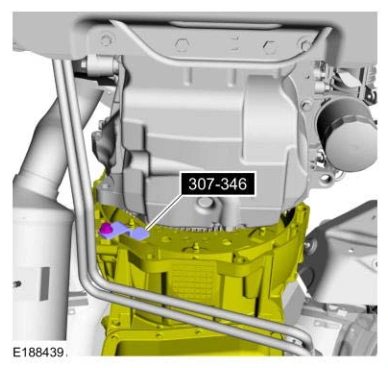

Transmission - 2.3L EcoBoost (231kW 314PS) — original illustration 2, reference 8881Original colors & callouts · Select to enlarge

23. If installing a new or re-manufactured transmission, remove and discard the bolts.
