Transmission - 2.3L EcoBoost (231kW 314PS) — Installation — Automatic Transmission - 6-Speed Automatic Transmission - 6R80 · Reference 8882

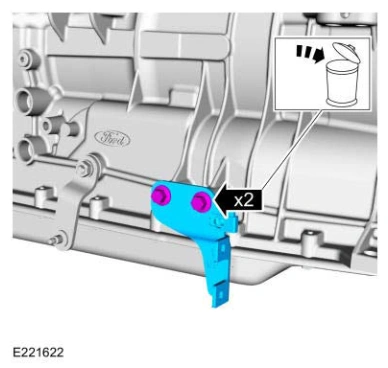

Transmission - 2.3L EcoBoost (231kW 314PS) — original illustration 1, reference 8882Original colors & callouts · Select to enlarge

NOTE: Failure to clean the transmission fluid cooler tubes can result in transmission failure.

24. If the transmission is to be overhauled or if installing a new or re-manufactured transmission, carryout the transmission fluid cooler backflushing and cleaning. Refer to: Transmission Fluid Cooler - Backflushing and Cleaning .

REMOVAL AND INSTALLATION > TRANSMISSION - 2.3L ECOBOOST (231KW 314PS)

> INSTALLATION

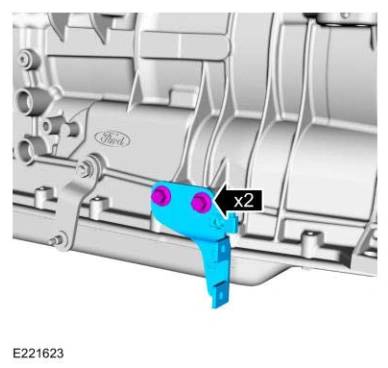

1. If removed, install the bracket and the new bolts.

Torque

: 18 lb.ft (25 Nm)

Transmission - 2.3L EcoBoost (231kW 314PS) — original illustration 2, reference 8882Original colors & callouts · Select to enlarge
