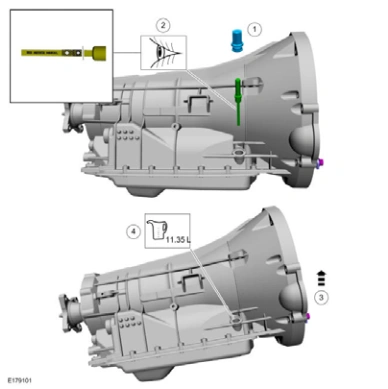

1. Remove the transmission fluid fill plug transmission fluid level indicator assembly.
: 19 lb.ft (26 Nm)
2. Verify transmission is filled with transmission fluid.
3. Slightly tilt the transmission rearward.
4. If the transmission was disassembled, add 11.35L (12 qt) of transmission fluid to the transmission through the transmission fluid fill hole.
NOTE: Make sure the transmission jack contacts the outer ribs of the transmission fluid pan.
NOTE: Secure the transmission to the transmission jack with a safety strap.
5. Using a high-lift transmission jack, position the transmission into the vehicle behind the engine and remove the special tool. Use Special Service Tool: 307-346 (T97T-7902-A)Retainer, Torque Converter. Use the General Equipment: Transmission Jack
