Transmission - 2.3L EcoBoost (231kW 314PS) — Installation

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,887HTML edition
← Chapter contentsManual collection
Transmission - 2.3L EcoBoost (231kW 314PS) — original illustration 1, reference 8887Original colors & callouts · Select to enlarge

10. Install the dust shield and the bolt.

Torque

: 18 lb.ft (25 Nm)

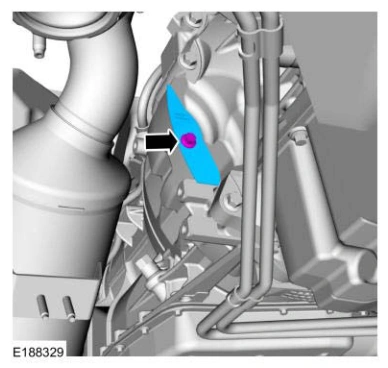

Transmission - 2.3L EcoBoost (231kW 314PS) — original illustration 2, reference 8887Original colors & callouts · Select to enlarge

11. Install the catalytic converter bracket, the nuts and the bolts.

Torque

: 18 lb.ft (25 Nm)
