Transmission - 2.3L EcoBoost (231kW 314PS) — Installation

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,886HTML edition

← Chapter contents Manual collection

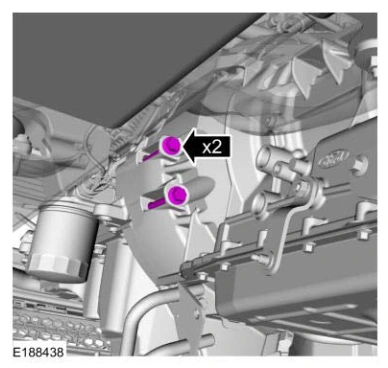

Transmission - 2.3L EcoBoost (231kW 314PS) — original illustration 1, reference 8886Original colors & callouts · Select to enlarge

8. Install the RH side bellhousing bolts.

Torque

: 35 lb.ft (48 Nm)

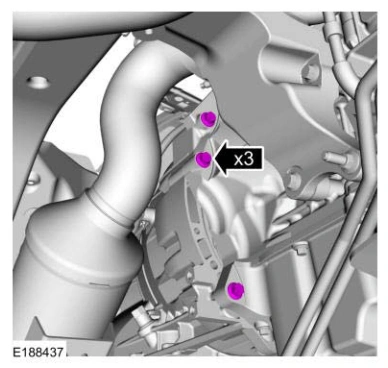

Transmission - 2.3L EcoBoost (231kW 314PS) — original illustration 2, reference 8886Original colors & callouts · Select to enlarge

9. Install the lower bellhousing bolt and stud bolt.

Torque

: 35 lb.ft (48 Nm)
