Removal

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,897HTML edition
← Chapter contentsManual collection
Removal — original illustration 1, reference 8897Original colors & callouts · Select to enlarge

8. Remove the LH catalyst monitor sensor. Refer to: Catalyst Monitor Sensor .

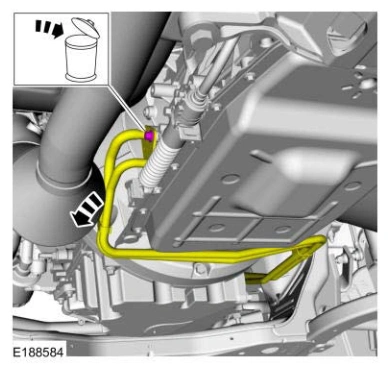

9. Remove and discard the bolt and position the transmission fluid cooler tubes aside.

Removal — original illustration 2, reference 8897Original colors & callouts · Select to enlarge

10.

1. Disconnect the selector lever cable from the selector lever.

2.
