Removal

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,900HTML edition
← Chapter contentsManual collection
Removal — original illustration 1, reference 8900Original colors & callouts · Select to enlarge

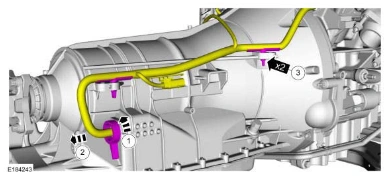

16. Remove the lower bellhousing bolts.

Removal — original illustration 2, reference 8900Original colors & callouts · Select to enlarge

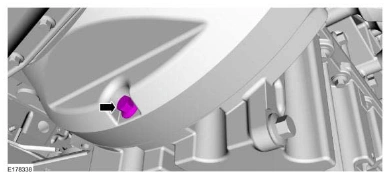

17. Remove the upper bellhousing bolts.

Removal — original illustration 3, reference 8900Original colors & callouts · Select to enlarge

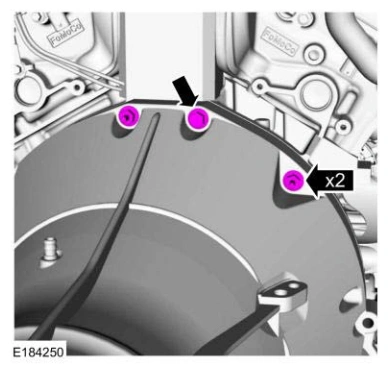

18. Remove the LH side bellhousing bolts.
