Removal — Automatic Transmission - 6-Speed Automatic Transmission - 6R80 · Reference 8901

Removal — original illustration 1, reference 8901Original colors & callouts · Select to enlarge

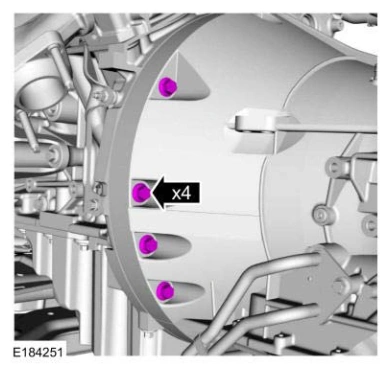

19. Remove the RH side bellhousing bolts.

Removal — original illustration 2, reference 8901Original colors & callouts · Select to enlarge

20. Slide the transmission back enough to install the special tool and remove the transmission from the vehicle. Use Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.
