Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,903HTML edition
← Chapter contentsManual collection

Torque

: 18 lb.ft (25 Nm)

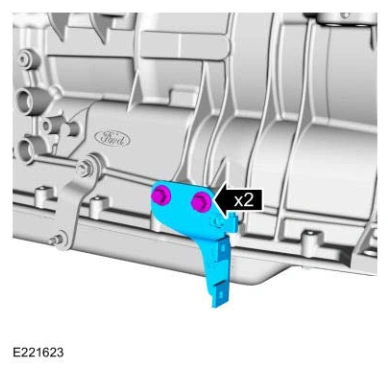

Installation — original illustration 1, reference 8903Original colors & callouts · Select to enlarge

2. Lubricate the torque converter pilot hub with multi-purpose grease.

Material

: Motorcraft ® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

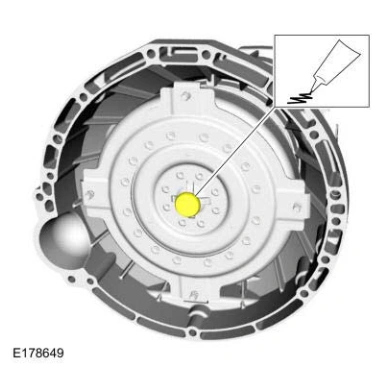

Installation — original illustration 2, reference 8903Original colors & callouts · Select to enlarge

3.

1. Inspect the torque converter stud and flexplate for paint marks.

2. Align the torque converter stud and flexplate hole near the paint marks to the 12 o'clock position.

Ford_Mustang_all_2015-2017.pdf · source reference 8903
