Installation

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,902HTML edition
← Chapter contentsManual collection

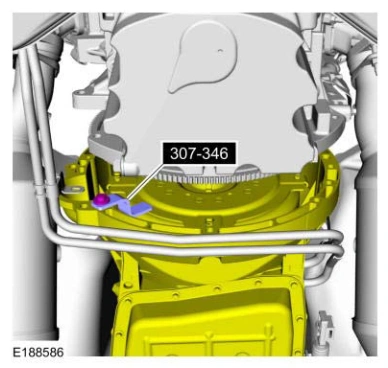

Installation — original illustration 1, reference 8902Original colors & callouts · Select to enlarge

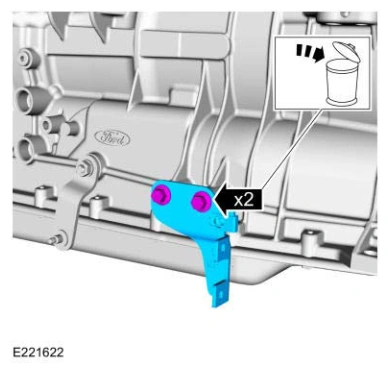

21. If installing a new or re-manufactured transmission, remove and discard the bolts.

Installation — original illustration 2, reference 8902Original colors & callouts · Select to enlarge

NOTE: Failure to clean the transmission fluid cooler tubes can result in transmission failure.

22. If the transmission is to be overhauled or if installing a new or re-manufactured transmission, carryout the transmission fluid cooler backflushing and cleaning. Refer to: Transmission Fluid Cooler - Backflushing and Cleaning .

REMOVAL AND INSTALLATION > TRANSMISSION - 3.7L DURATEC (227KW 301PS) >

INSTALLATION

1. If removed, install the bracket and the new bolts.
