Installation

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,904HTML edition
← Chapter contentsManual collection

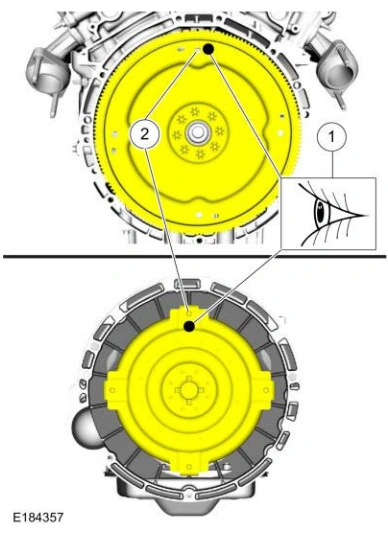

Installation — original illustration 1, reference 8904Original colors & callouts · Select to enlarge

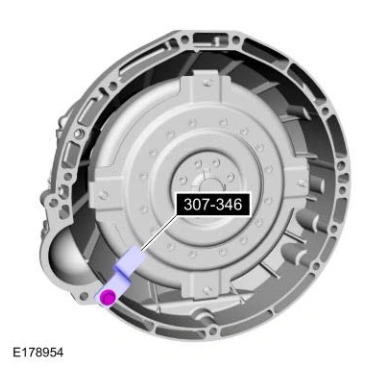

4. Install the special tool.Use Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.

Installation — original illustration 2, reference 8904Original colors & callouts · Select to enlarge

NOTE: If transmission was disassembled, add transmission fluid to the transmission.

NOTE: If transmission is being replaced, remove the transmission fluid fill plug and verify that the transmission is filled with transmission fluid.

5.
