Installation

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,907HTML edition
← Chapter contentsManual collection
Installation — original illustration 1, reference 8907Original colors & callouts · Select to enlarge

9. Install the RH side bellhousing bolts.

Torque

: 35 lb.ft (48 Nm)

Installation — original illustration 2, reference 8907Original colors & callouts · Select to enlarge

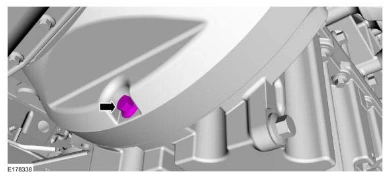

10. Install the lower bellhousing bolt.

Torque

: 35 lb.ft (48 Nm)

Installation — original illustration 3, reference 8907Original colors & callouts · Select to enlarge
