Installation

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,908HTML edition
← Chapter contentsManual collection

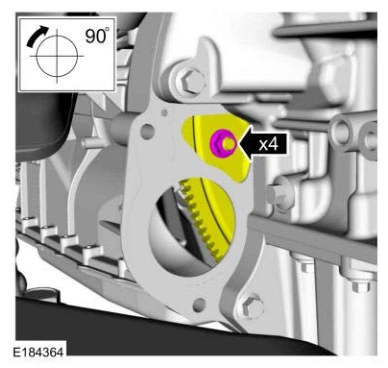

NOTE: Using the crankshaft pulley bolt, turn the engine clockwise.

11. Install the new torque converter nuts.

Torque

: 35 lb.ft (48 Nm)

Installation — original illustration 1, reference 8908Original colors & callouts · Select to enlarge

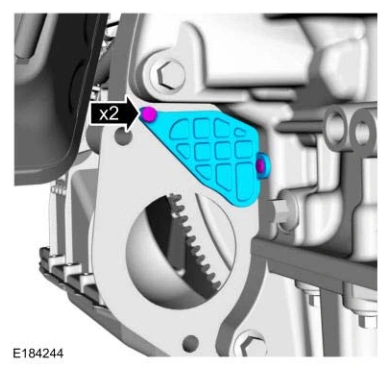

12. Install the access cover and the retainers.

Installation — original illustration 2, reference 8908Original colors & callouts · Select to enlarge

13.

1. Push the transmission electrical connector in to connect.

2.
