Installation — Automatic Transmission - 6-Speed Automatic Transmission - 6R80 · Reference 8911

Installation — original illustration 1, reference 8911Original colors & callouts · Select to enlarge

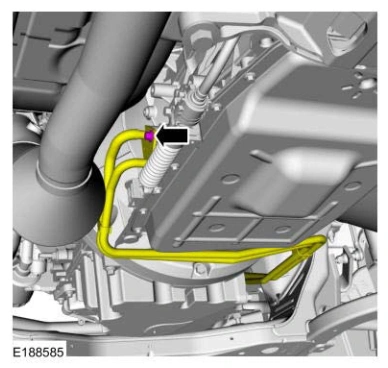

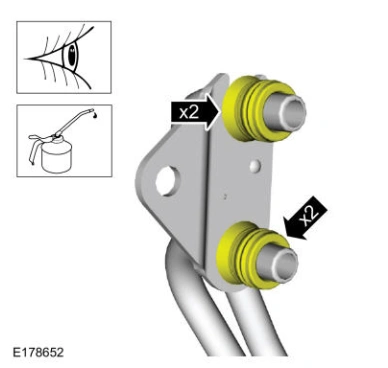

19. Install the transmission fluid cooler tubes and the new bolt.

Torque

: 18 lb.ft (25 Nm)

Installation — original illustration 2, reference 8911Original colors & callouts · Select to enlarge

20. Install the LH catalyst monitor sensor. Refer to: Catalyst Monitor Sensor .

21.

NOTE: Vehicles are equipped with either an underbody shield or a subframe bracket and underbody shield assembly.

1. Install the underbody shield and the bolts.

Torque
