Transmission - 5.0L 32v Ti-VCT — Removal

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,914HTML edition
← Chapter contentsManual collection

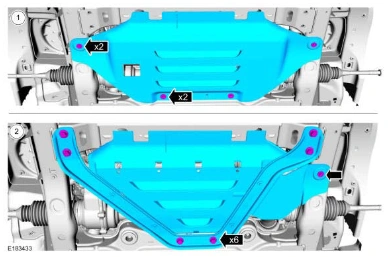

NOTE: Vehicles are equipped with either an underbody shield or a subframe bracket and underbody shield assembly.

4.

1. Remove the bolts and the underbody shield.

2. Remove the bolts and the subframe bracket and underbody shield assembly.

Transmission - 5.0L 32v Ti-VCT — original illustration 1, reference 8914Original colors & callouts · Select to enlarge

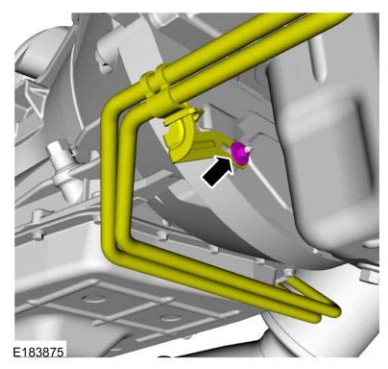

5. Remove the transmission cooling tube nut and bracket from the flexplate inspection cover stud bolt.

Transmission - 5.0L 32v Ti-VCT — original illustration 2, reference 8914Original colors & callouts · Select to enlarge

6. Remove the stud bolts and the flexplate inspection cover.

Ford_Mustang_all_2015-2017.pdf · source reference 8914
