Transmission - 5.0L 32v Ti-VCT — Removal

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,916HTML edition
← Chapter contentsManual collection

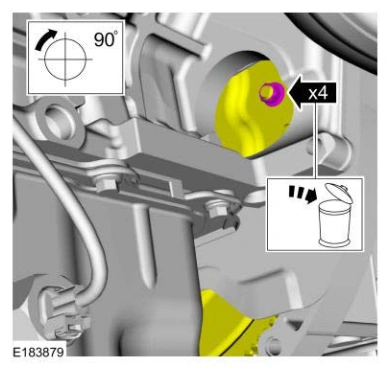

Transmission - 5.0L 32v Ti-VCT — original illustration 1, reference 8916Original colors & callouts · Select to enlarge

NOTE: If transmission disassembly or installation of a new transmission is necessary, drain the transmission fluid.

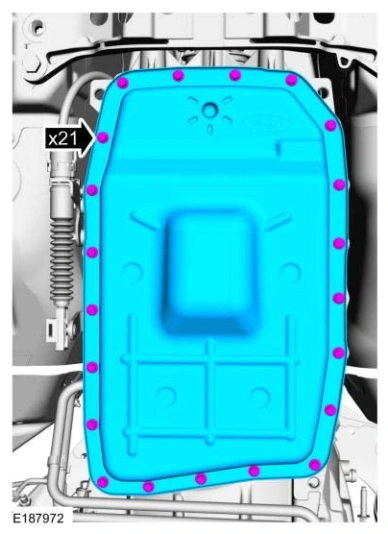

9. Remove the transmission fluid pan bolts and the transmission fluid pan and allow the transmission fluid to drain.

Transmission - 5.0L 32v Ti-VCT — original illustration 2, reference 8916Original colors & callouts · Select to enlarge

NOTE: It is not necessary to torque transmission fluid pan bolts at this time.

10. Install the transmission fluid pan and the bolts.
