Transmission - 5.0L 32v Ti-VCT — Removal

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,917HTML edition
← Chapter contentsManual collection
Transmission - 5.0L 32v Ti-VCT — original illustration 1, reference 8917Original colors & callouts · Select to enlarge

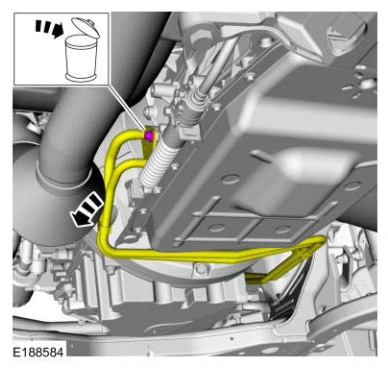

11. Remove and discard the bolt and position the transmission fluid cooler tubes aside.

Transmission - 5.0L 32v Ti-VCT — original illustration 2, reference 8917Original colors & callouts · Select to enlarge

12.

1. Disconnect the selector lever cable from the selector lever.

2. Remove the bolt from the bracket.

3.
