Transmission - 5.0L 32v Ti-VCT — Removal

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,920HTML edition
← Chapter contentsManual collection
Transmission - 5.0L 32v Ti-VCT — original illustration 1, reference 8920Original colors & callouts · Select to enlarge

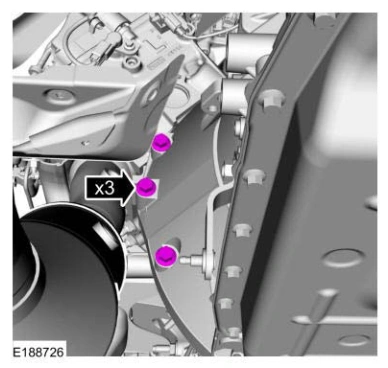

18. Remove the RH side bellhousing bolts.

Transmission - 5.0L 32v Ti-VCT — original illustration 2, reference 8920Original colors & callouts · Select to enlarge

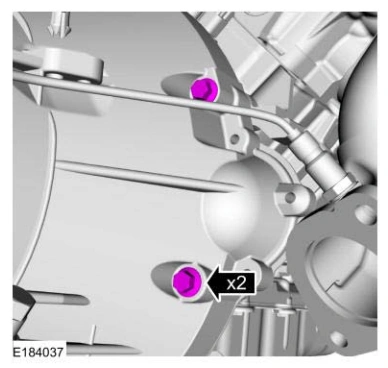

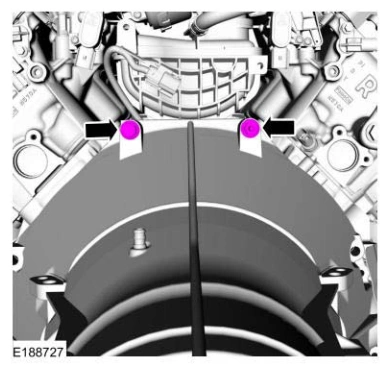

19. Remove the upper bellhousing bolt and stud bolt.

Transmission - 5.0L 32v Ti-VCT — original illustration 3, reference 8920Original colors & callouts · Select to enlarge
