Installation

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,921HTML edition
← Chapter contentsManual collection

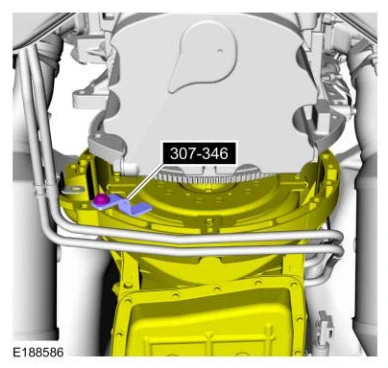

20. Slide the transmission back enough to install the special tool and remove the transmission from the vehicle. Use Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.

Installation — original illustration 1, reference 8921Original colors & callouts · Select to enlarge

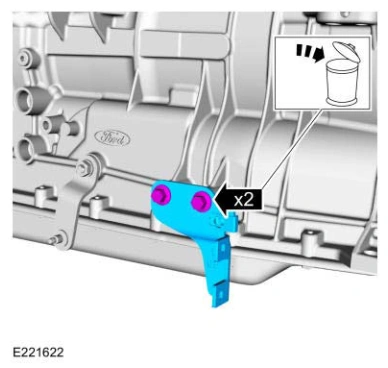

21. If installing a new or re-manufactured transmission, remove and discard the bolts.

Installation — original illustration 2, reference 8921Original colors & callouts · Select to enlarge

NOTE: Failure to clean the transmission fluid cooler tubes can result in transmission failure.

22. If the transmission is to be overhauled or if installing a new or re-manufactured transmission, carryout the transmission fluid cooler backflushing and cleaning. Refer to: Transmission Fluid Cooler - Backflushing and Cleaning .

REMOVAL AND INSTALLATION > TRANSMISSION - 5.0L 32V TI-VCT >

INSTALLATION
