Transmission - 5.0L 32v Ti-VCT — Removal — Automatic Transmission - 6-Speed Automatic Transmission - 6R80 · Reference 8919

Transmission - 5.0L 32v Ti-VCT — original illustration 1, reference 8919Original colors & callouts · Select to enlarge

NOTE: Do not pull on the wiring harness to disconnect the electrical connector or damage to the electrical connector will occur.

16.

1. Rotate the transmission electrical connector counterclockwise.

2. Pull the transmission electrical connector out to disconnect.

Detach the retainers and position the wiring harness aside.

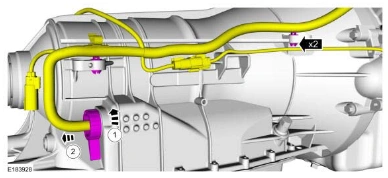

Transmission - 5.0L 32v Ti-VCT — original illustration 2, reference 8919Original colors & callouts · Select to enlarge

17. Remove the LH side bellhousing bolts.

Ford_Mustang_all_2015-2017.pdf · source reference 8919
