Transmission - 5.0L 32v Ti-VCT — Removal — Automatic Transmission - 6-Speed Automatic Transmission - 6R80 · Reference 8918

Disconnect the selector lever cable from the bracket.

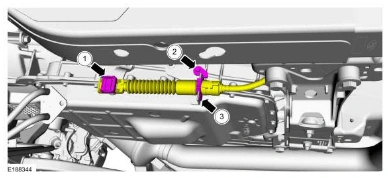

Transmission - 5.0L 32v Ti-VCT — original illustration 1, reference 8918Original colors & callouts · Select to enlarge

NOTE: Make sure the transmission jack contacts the outer ribs of the transmission fluid pan.

NOTE: Secure the transmission to the transmission jack with a safety strap or chain.

13. Using a high-lift transmission jack, support the transmission.

1. Safety chain

2. Outer ribs of the transmission fluid pan Use the General Equipment: Transmission Jack

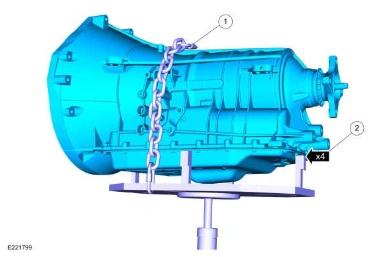

Transmission - 5.0L 32v Ti-VCT — original illustration 2, reference 8918Original colors & callouts · Select to enlarge

14. Remove the transmission support crossmember. Refer to: Transmission Support Crossmember .

15. Disconnect the selector lever cable and wiring harness retainers from the transmission case.
