Transmission - 5.0L 32v Ti-VCT — Removal

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,915HTML edition
← Chapter contentsManual collection
Transmission - 5.0L 32v Ti-VCT — original illustration 1, reference 8915Original colors & callouts · Select to enlarge

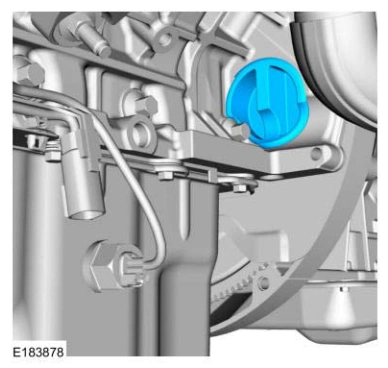

7. Remove the rubber access plug.

Transmission - 5.0L 32v Ti-VCT — original illustration 2, reference 8915Original colors & callouts · Select to enlarge

NOTE: Only rotate the crankshaft in a clockwise direction.

8. Remove and discard the torque converter nuts. Use the General Equipment: Magnetic Socket
