Installation

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,922HTML edition
← Chapter contentsManual collection

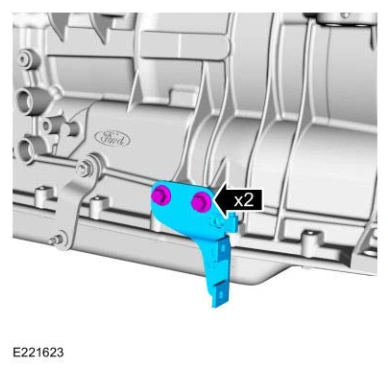

1. If removed, install the bracket and the new bolts.

Torque

: 18 lb.ft (25 Nm)

Installation — original illustration 1, reference 8922Original colors & callouts · Select to enlarge

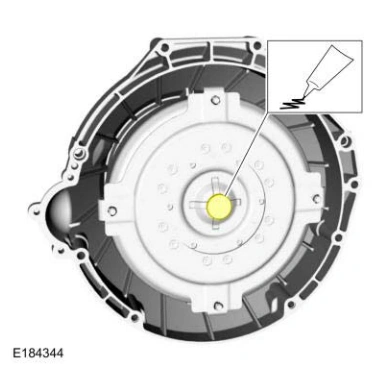

2. Lubricate the torque converter pilot hub with multi-purpose grease.

Material

: Motorcraft ® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

Installation — original illustration 2, reference 8922Original colors & callouts · Select to enlarge

3.

1. Inspect the torque converter stud and flexplate for paint marks.

2.
